This article continues the "Introduction to Prototyping with EasyEDA" series. In the first article, we talked about how to install EasyEDA and how to create a new project. If you missed Part 1 go check it out:

Image.

In part II we will do the following: Walk through the process of creation of circuitry for our device. Learn how to use the selector of components for devices. Master the main device design tools.

Ideation

If you clearly understand what your device is intended for, you will come up with the list of requirements and the step-by-step development plan. In any hardware project, you should start with the idea of the future device. You need to ask yourself a question: which problem should this device solve?

To have an example, let's imagine that we design a simple but useful device — a timer with adjustable delay. The implementation of such a device on discrete elements will enable us to cover the basic principles of circuit design, board simulation, and tracing.

Simple technical requirements for our device:

  • Start by button.
  • Triggering indication.
  • Adjustable delay.
  • USB(5v) power supply.

Action plan

Once we have decided on the task, it is necessary to list the main steps for its completion from a schematic prospective.

  1. Power supply. Search for USB type connector.
  2. Main timer. Simple solutions o Основной таймер. Simple realization variants on discrete elements(without IC's).
  3. Selecting the pulse generator for indication.
  4. Output array of LEDs for indication. Calculation of consumption. Best way to control it.

As we came up with the concept of our new device, let's analyze the basic tools for building its circuit.

Let's go back to our project on EasyEDA and create a schematic file in the folder of our current project. To do this, we select it and clickFile > New > Schematic.

Create a Schematic File in EasyEDA.

After that, you'll notice changes in your workspace. The toolbar, the properties panel, and the main working field of the document will be displayed.

The Toolbar, the Properties Panel, and the Main Working Field of the Document in EasyEDA.

TheWiring Tools panel contains tools for connecting the elements by conductors and bus routing: data, ports, power; marking the voltage measurement point (necessary for simulation), renaming networks, and grouping the elements.

On theDrawing Tools panel, you can get access to a toolkit for creating and modifying graphic items: the document size editor (Document Settings), text editor (comments and simulation directives), a set of primitive graphic forms, drag-and-drop tool. There you can also specify a document reference point.

To navigate in the workspace, useMMB to move andSCROLL to zoom.

Implementation

The schematic editor arranges the elements with a grid snap. With this EasyEDA tool, you can alignment the elements and create connections between them. Let's open and analyze the canvas parameters. To do it, click on the empty space on the canvas.

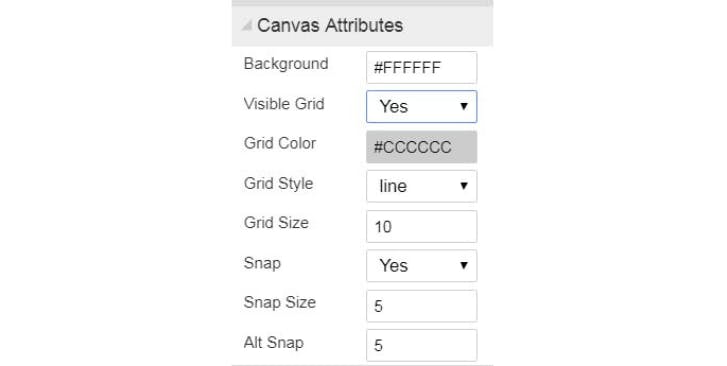

Canvas Attributes in EasyEDA.

In the canvas settings, you can change the canvas color, enable or disable the grid, change the grid color, type, size, enable snapshots, change the snap's basic and alternative sizes.

For quick placement of schematic components, EasyEDA has a library of common elements. Go to theEELib tab to expand the library.

EELib Tab in EasyEDA.

Following the design plan, we need to take care of the device power supply first. Since we are going to power the device from the USB port, we will choose the corresponding element in theConnectors section.

We will useMicro USB for its ease of use and universal availability.

To open the list of items of one class, click on the arrow next to the item's image.

Micro USB-B 5P-Female-SMT in EasyEDA.

Then click on this item in EElib again and after that click on the document workspace. Use theEsc key to exit the item arrangement mode.

To view the properties of an element in the work field, select the corresponding option. There you can set the location, view documentation, and information about the element supplier.

EasyEDA.

Installing ground and voltage buses in EasyEDA

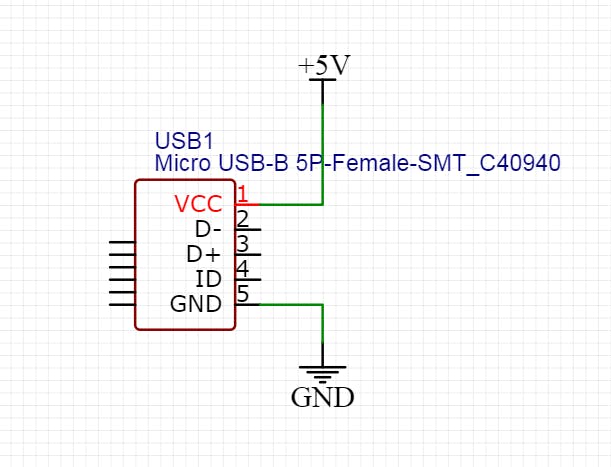

To do this, selectNetFlag +5v (USB uses 5V power) on theWiring Toolspanel and place it next toVCC at USB input. After that choose one of the designations ofNetFlag GND (functionally the designations of circuit lands do not differ, the division is caused by the differences in standards of individual countries). Then place the ground next toGND output of USB connector.

Micro USB-B 5P-Female-SMT in EasyEDA.

UseWire (hotkeyW) on theWiring Tools tab to create connections between elements. With the wiring tool, point to the output pin of theVCC element, a dot will appear on it, click the dot to "take out" the wire. Connect it to the power bus and also click on the point that appears.

Quick recommendations

The power and data buses and the ports with similar names are connected. When we add the 5V bus again and connect it to some element, in the Simulation Mode and PCB Tracing mode all the output ports of the elements where the 5V comes will be connected to one point. Example of the schematic and the board:

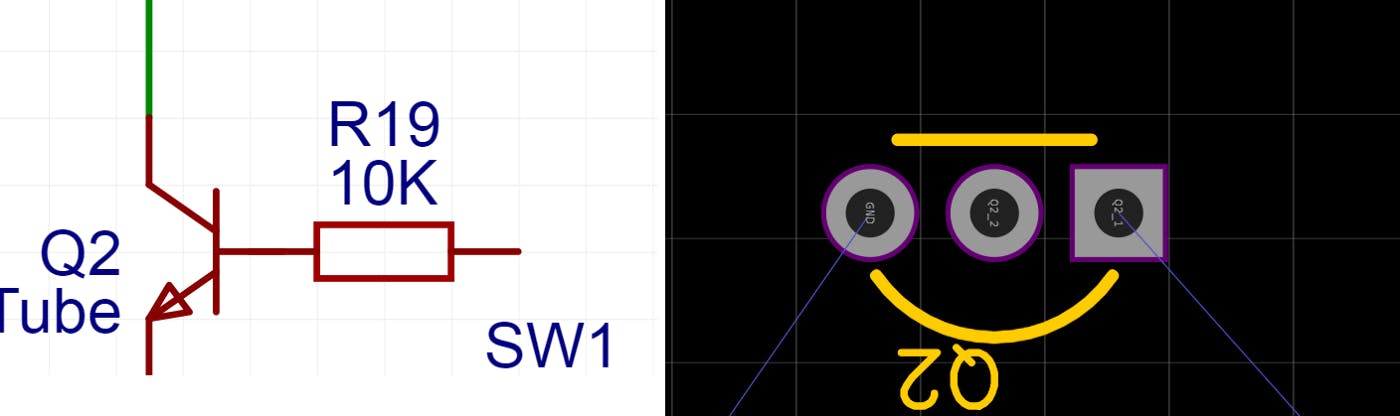

Simulation Mode and PCB Tracing mode in EasyEDA.

The use of buses is convenient if the schematic has a large number of connections (many elements or data buses). However, you should not focus on only buses and ports. You should not focus on the use of only connections either. The schematic is easy to read when wiring connections to key pins and using buses to multiple data ports. Examples of difficult- and easy-to-read schematics:

EasyEDA Schematics.

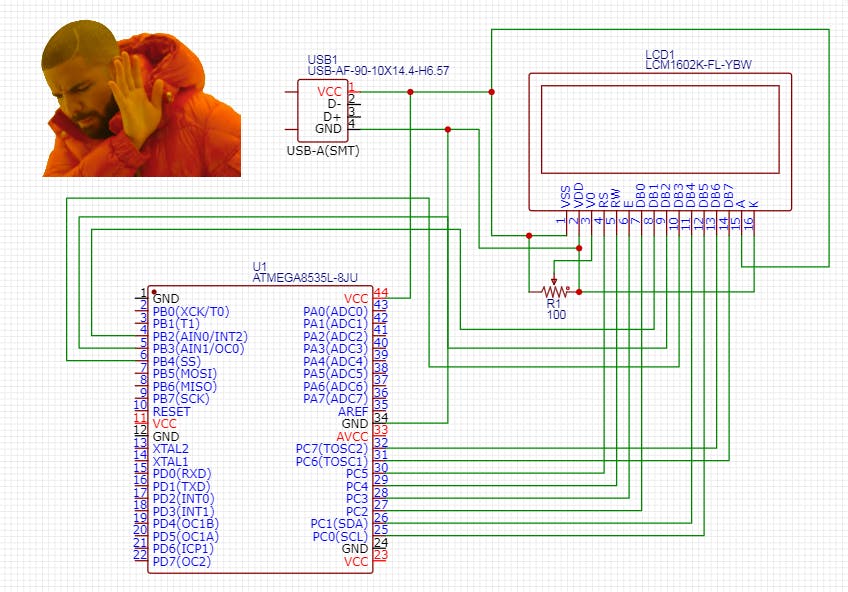

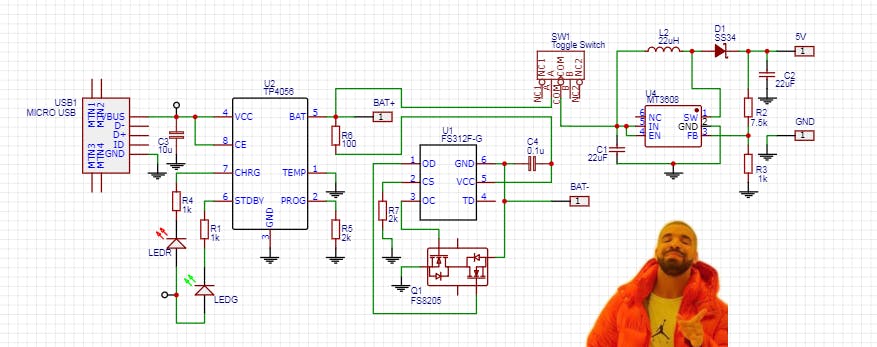

The data and power buses are wired, the wires intersect at many points, it is easy to get tangled up in the connections and make an imperceptible error.

EasyEDA Schematics.

Most connections are made through ports, it is visually difficult to find all connection points of the same ports, you have to double-check them several times. On large schemes, finding all similar ports takes a lot of time.

EasyEDA Schematics.

Wires and elements rarely overlap, it is easy to trace connections. With this circuit design, errors are hard to make and easy to find.

EasyEDA Schematics.

Even with a large number of connections and crossings, it is quite easy to trace the work of the circuit. Using bus bars in this example helps get rid of the heap of power connections. This makes it easier to understand the circuitry of the device.

Getting back to circuit design

After the power supply has been connected, we can start designing the heart of our timer —monostable multivibrator. To provide an example of work with both discrete elements and chips in our schematic, we will use 2 timers, one on discrete elements, and the second using the knownNE555 chip. The last one is necessary for setting the indication time.

Let's start designing the first-timer. You can assemble it using the following diagram:

EasyEDA Schematics.

The function of this circuit is as follows: when the SW1 is closed, a voltage pulse will be generated on the out pin. You can calculate the duration of the pulse using this equation:

Function.

whereR20 stands for resistance in Ohm andС6 for capacitance in Farads.

In a nutshell, by changing the resistanceR20, you can change the duration of the output pulse. The principle of operation and detailed description of transients in the scheme would make a good topic for a separate article, so we will just focus on the usage of this scheme in our project. To better understand how this timer works, you can browse websites specializing in electronics, for example here. The timer reacts to the fall of the pulse, it means that it will start working when the button is pressed, not released. We will consider the calculation of circuitry in more detail in one of the following articles.

To ensure that our schematic has adequate information about the parts that can then be ordered later, it's better to use an LCSC parts selector.

To select the parts on the LCSC, click on the tabLibraries.

Libraries in EasyEDA.

In the component search window, we have the option of enabling us to select a search engine. If you select EasyEDA, the search types from EasyEDA will appear:

  • Types:

SCH Libs — the libraries of schematic elements.

PCB Libs — the libraries of circuit board components.

Spice Symbol — the libraries of simulation components.

SCH Modules — schematic modules (devices, sequences of devices).

PCB Modules — routing modules for including into circuit board.

PCB 3D Lib — 3D models of components for creating PCB 3d model.

  • Classes:

Work Space — components of your work space and your team workspaces.

LCSC — components from LSCS market.

JLCPCB Assembled — components which can be assembled to PCB after manufacturing process is over (see theSMT icon).

System — components imported with a project from other IDE (i.e. KiCad, Eagle, etc.)

Follow — the components of users to whose updates you have subscribed.

After you have found and selected a component, press thePlace button to place it on the workspace.

SelectLCSC Electronics to open the web view of the LCSC website in the search box. Let's find a number of items using this search engine.

In our circuit we have several resistors, a pair of BC547 transistors, a button, a capacitor, and a diode.

Let's start with the resistors:

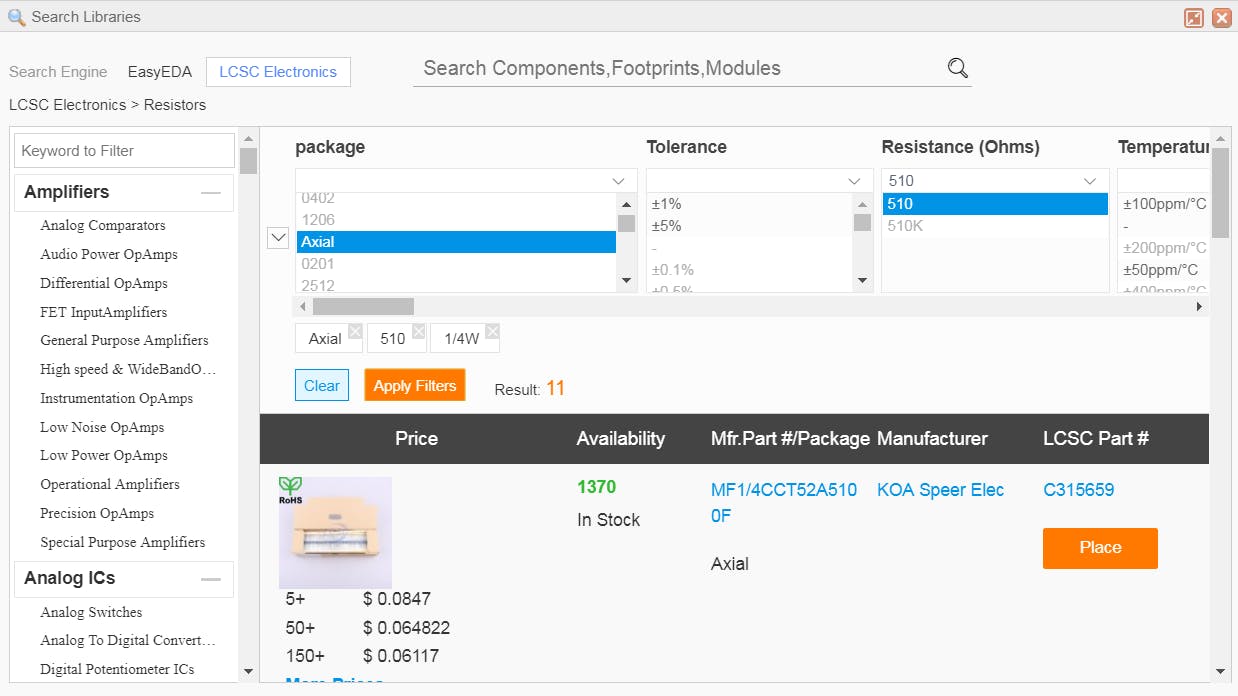

EasyEDA Workspace.

In the left column, selectResistors. There are many kinds of resistors with different parameters, materials and production technologies available there.

We're interested in the resistors with the following parameters:

Package: Axial — package for placement through the holes in the board.

Resistance:510 Оhm.

Power (Watts): Our timer works with low currents and low voltages, so the 0.25 Watt power package is acceptable. The acceptable power can be calculated by the following formula:

Formula.

Where is U  voltage on the resistor, in our case 5v, R  is resistance.P is the resulting power consumption of a resistor. By calculation, power is equal to0.04 Watts.

After selecting the search filters, you should select the manufacturer and then pressPlace to place the item on the schematic.

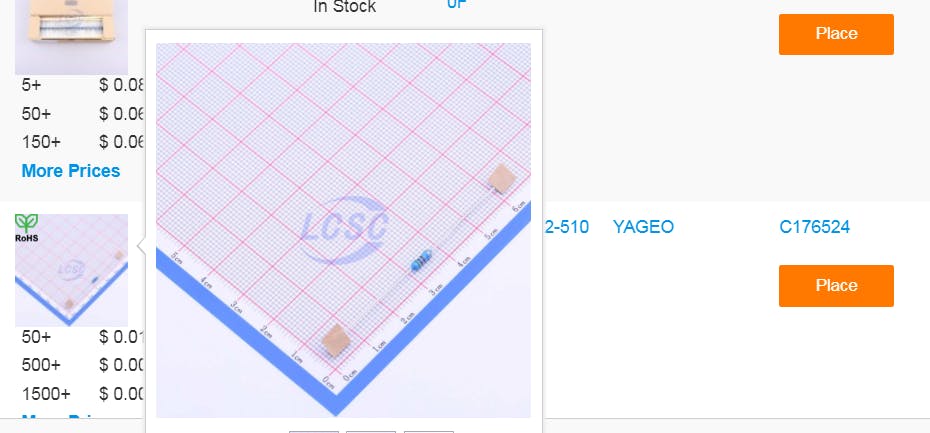

If you hover the mouse over the preview, the photo will be displayed in higher resolution.

Higher Resolution.

To rotate the part, you can use the upper Rotate and Flip toolbar or the Space hot key, you also can use CTRl-C + CTRL-V to copy and paste the part.

Rotate and Flip toolbar in EasyEDA.

Use the following guidelines to find and place the remaining10 KOhm resistors,100 KOhm potentiometer,1000 µF electrolytic capacitor, and BC547 transistors. Use the following filters to find them:

Potentiometer:

  • Section:Resistors —Precision Potentiometer. Find with one rotation adjustment.
  • Resistance: 100 KOhm — 300 KOhm. Choose any within this range.
  • Package: Through Hole.

I have chosen this.

Capacitor:

  • Section:Capacitors —Aluminium Electrolytic Capacitors — Leaded.
  • Capacitance: 1000uF
  • Voltage: 6.3V. USB is using 5V supply. For our power supply 6.3v is the closest voltage. You can pick the capacitor with higher (not less!) voltage.

I have chosen this. Please note that electrolytic capacitors are asymmetric, — they have+ and-.

Transistor:

BC547 is one of the most common transistors. It's analogous to the legendary Soviet Union transistor KT315. There's nothing special about it, the model defines all the characteristics. There are small deviations depending on the manufacturer and batch, but for our project, they are not so important. I have chosen this. To mirror the transistor vertically, use theRotate and Flip menu.

Button, diode:I took them both from the standard EELib. All EELib components are linked to LCSC, so you can safely use them.

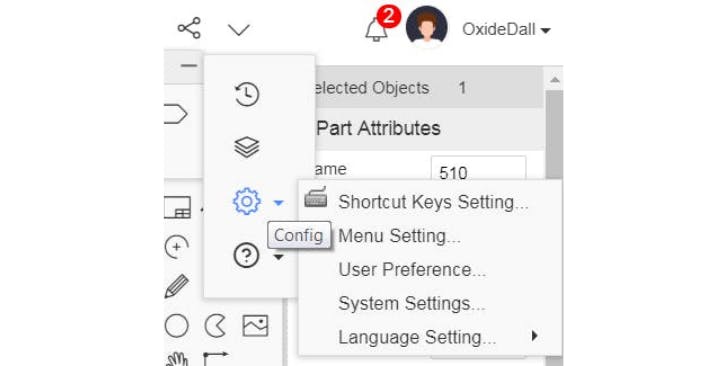

To make the design process more convenient, you can use the hotkeys. The list of all hotkeys with possibility of editing is in the Config — Shortcut Keys Settings menu:

Config — Shortcut Keys Settings menu in EasyEda.

The first-timer ensuring the main delay is ready, now you need to design a timer setting the indication time. You can surely take the existing one, copy it, and connect its input to the output of the first-timer. To make a comparison with similar solutions and get familiar with the new type of elements, let's design the second time using one of the most popular chips —NE555.

This chip stands out from others as it can be applied literally everywhere (from LED flashing to rocket control), cheapness, and stable operation.

More detailed information about NE555 can be found in numerous sources on the Internet, for example, here.

We're going to use the chip as a simple monostable multivibrator. The scheme is displayed below:

EasyEDA schematic.

The function of the circuit is as follows: when a falling edge of voltage appears on theoutpin, chip fires a voltage pulse (VCC — 1.5V) at the chip
output (pin 3). You can use this formula to calculate the duration of pulse:

Formula.

This schematic uses elements similar to the ones employed by the previous version of the timer, except for the non-polar capacitor and the chip itself.

We have already created one-timer using elements soldered through holes in the board, so let's create a second timer using surface mounting devices.

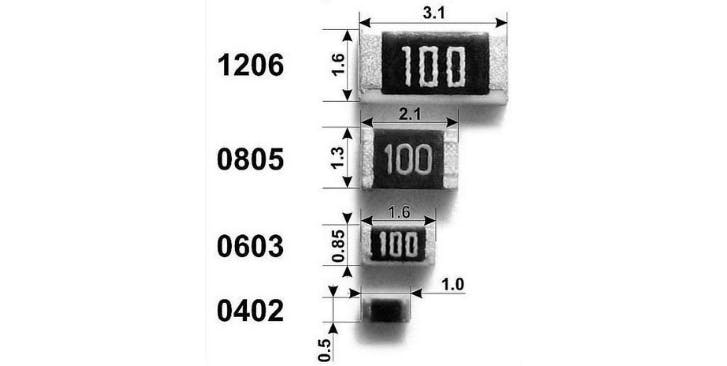

Surface mounting devices such as capacitors, resistors, diodes, and chips are manufactured according to standard sizes. The standard sizes for resistors in mm are as follows:

The Standard Sizes for Resistors in mm.

For the first experience with SMD we will try to use the standard 1206. To take 1206 resistors and capacitors, select the corresponding filter in the search box. A tantalum capacitor can be used instead of an electrolytic capacitor:

Electrolytic Capacitor.

Here's the example illustrating a non-polar capacitor selection:

Non-polar Capacitor Selection.

Here's the example illustrating a SMD resistor selection:

SMD Resistor Selection.

Here's the example illustrating the selection of NE555 in SOP-8 package:

Selection of NE555 in SOP-8 Package.

Now let's follow a further recommendation to finish the second part of our device.

Output stage

After the second timer has been designed, you need to add an indication unit to our device. I decided to add 9 red 5mm LEDs (consumption 20mA), you can choose other colors, LEDs are in theOptocouples & LEDs & Infrared —Light Emissive Diodes section.

The NE555 chip supports a maximum output current of 225mA. This is enough for 9 LEDs, but it is better to provide a margin. We will use the famous Darlington's transistor,TIP122 for power amplification. Read the transistor's documentation here:

We will limit the LED current with SMD resistors. The following formula can be used to calculate the resistance to the LEDs:

Formula.

where is U(r)— voltage on resistor.

U(led)​ — forward led voltage. You can take it from the datasheet (in my case it's 2.4v)

I(led) — forward led current (in my case it's 20mA).

Thus, for 5mm red LEDs the resistance will be130 Ohm.

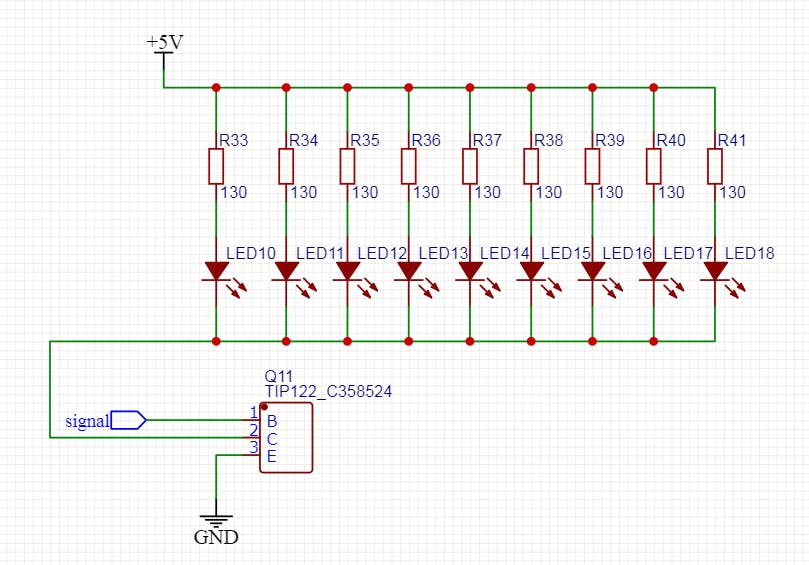

The scheme is as follows:

EasyEDA schematic for 5mm Red LEDs.

How does it work?

When current is applied from the NE555 to the TIP122 transistor base, it is opened to saturation, and the circuitC — E (collector — emitter) is opening, the LEDs are light, everything is quite simple.

On completion of a wiring stage of LEDs array, the circuitry of our device is finished. You only need to perform a simulation, which will result in minor corrections to the schematics.

Checking the connections

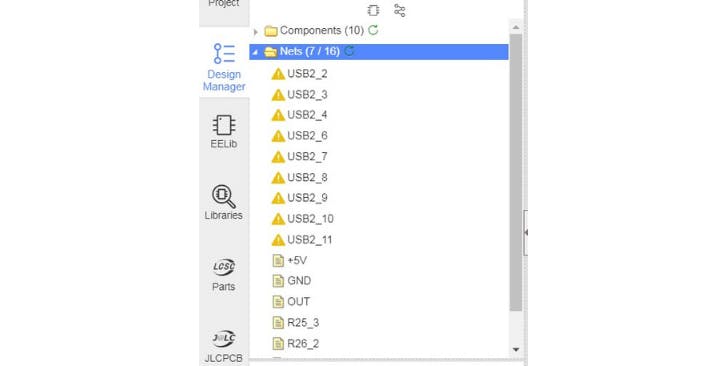

After you finish the circuitry, it needs to be checked. To do this, open theNets folder on theDesign Manager tab. In case some pins of components in your schematic are not connected to anything, or different buses are shorted (5V and ground for example), you will see a number of warnings.

Nets Folder on the Design Manager Tab in EasyEDA.

In this case, we have not connected the grounding contacts of the USB port. Let's fix this by connecting all the remaining USB port pins to the ground. It is better to leave the data pin unconnected as they can be used to transfer information about the consumer to a voltage source.

Micro USB-B 5P-FFEMALE-SMT in EasyEDA.

Common mistakes

The following errors may occur during the schematic design:

  • Overlapping the new track contact area of the element.

Overlapping the New Track Contact Area of the Element in EasyEDA.

  • Overlay of contact pads of elements. They seem to be connected, but in fact, they're not. There's no need to trivialize the size of the circuit. Minimizing the board — saves cost, size of the device, minimizing the circuit — will add errors and minimize readability.

Overlay of Contact Pads of Elements.

  • The tracks are perpendicular to the contacts. When you move an item, you can shorten the tracks without noticing.

The Tracks are Perpendicular to the Contacts.

You can always check track connections to contacts of the items on theDesign Manager tab.

Conclusion

After reading this article hope you've received knowledge and experience of using EasyEDA service. With this knowledge, you can design the schematic of your own device according to all the development rules.

In the next article, you'll get familiar with the tools of simulating the schematic of your device.
